Daelim 50cc Parts Manuals for MRP

Tuesday, November 1, 2011
When calling us or looking for Daelim scooter parts make sure to use the OEM part numbers. We are adding more pictures and parts to the site. Below is the most common Scooter Engine for the 50cc.

We will be adding the PDF files online to the MRP site as well.

Daelim Motors USA closed in Miami in 2009. When they went out of business they left about 110 US dealers hanging and thousands of customers, we've tried since then to help the dealer base and consumers thanks to our supply of parts. We dont stock plastics, but bear with us we are expanding our engine parts selection.

99% of stores in the country are not going to have OEM parts for DAELIM simply because these vehicles are all based on their own designs. The engine parts are Honda based, but most dealers didn't stock parts so its become a huge issue for them, thats why we're here to help out. We can help the repair shop or former Daelim Motors dealer help you get back on the road.

Visit http://www.mrp-speed.com for the Daelim parts section.

CORDI 50cc MANUAL CLICK TO ENLARGE
For more manuals visit the MRP parts manual on our website for over 150 repair manuals with part numbers. When ordering OEM parts use OEM part numbers from the manual section.















































EFIVE MANUAL
E-01


FAN COVER / SHROUD
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
COVER ASS'Y, FAN
SHROUD COMP.
0.5
1.0
1    19600-SE1-0000 COVER ASS'Y, FAN 1 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?7C033936

1-1    19600-SE1-0010 COVER ASS'Y, FAN 1 Y 20070501 KMYSE1B4?7C033937
2    19610-SE1-0000 COVER COMP., FAN 1 N 20060601 KMYSE1B4?7C028918
3    19614-SE1-0000 ELEMENT B, FAN COVER 1 N 20060601 KMYSE1B4?7C028918
4    19615-SE1-0000 COVER COMP., FAN COVER 1 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?7C033936
4-1    19615-SE1-0010 COVER COMP., FAN COVER 1 Y 20070501 KMYSE1B4?7C033937
5    19620-SE1-0000 SHROUD COMP. 1 Y 20060601 KMYSE1B4?7C028918

6    19622-SE1-0000 SEAL, SHROUD 1 N 20060601 KMYSE1B4?7C028918
7    19625-SE1-0000-H1 RUBBER, FAN COVER 1 N 20060601 KMYSE1B4?7C028918
8    43453-SE1-0000 CLAMP B, RR.BRAKE CABLE 1 Y 20060601 KMYSE1B4?7C028918
9    S3891-05012-07 SCREW, WASHER 5x12 3 N 20060601 KMYSE1B4?7C028918
10    S6001-06016-00 BOLT, FLANGE SH.6x16 4 Y 20060601 KMYSE1B4?7C028918



E-02


CYLINDER / CYLINDER HEAD
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
CYLINDER A
GASKET, CYLINDER
HEAD, CYLINDER
GASKET, CYLINDER HEAD
BOLT, STUD 6x28
(ADD 0.1 FOR EACH)
PLUG, SPARK
1.2
1.0
0.8
0.8
0.4
0.1
1    12101-SE1-RZ00 CYLINDER A(EURO2) 1 Y 20060601 KMYSE1B4?7C028918
2    12191-SE1-RB00 GASKET, CYLINDER 1 Y 20060601 KMYSE1B4?7C028918
3    12201-SE1-0000 HEAD, CYLINDER 1 Y 20060601 KMYSE1B4?7C028918
4    12251-SE5-0000 GASKET, CYLINDER HEAD 1 Y 20060601 KMYSE1B4?7C028918
5    90001-SE5-0000 BOLT, FLANGE 6x95 4 Y 20060601 KMYSE1B4?7C028918

6    S2700-06028-1B BOLT, STUD 6x28 2 Y 20060601 KMYSE1B4?7C028918
7    S8076-5871G-00 SPARK PLUG (BR8HSA) 1 Y 20060601 KMYSE1B4?7C028918

E-02


CYLINDER / CYLINDER HEAD
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No

E-03


GENERATOR / COOLING FAN
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
FAN COMP., COOLING
GENERATOR ASS'Y, A.C
.STATOR COMP.
FLYWHEEL COMP.
0.6
0.8
0.6
1    19510-SE1-0000 FAN COMP., COOLING 1 Y 20060601 KMYSE1B4?7C028918
2    31100-SE1-0010 GENERATOR ASS'Y, A.C 1 Y 20060601 KMYSE1B4?7C028918
3    31110-SE1-0000 FLYWHEEL COMP. 1 Y 20060601 KMYSE1B4?7C028918
4    31120-SE1-0010 STATOR COMP. 1 Y 20060601 KMYSE1B4?7C028918
5    S4050-10080 NUT, FLANGE 10mm 1 Y 20060601 KMYSE1B4?7C028918

6    S6001-06012-00 BOLT, FLANGE SH.6x12 2 Y 20060601 KMYSE1B4?7C028918
7    S6001-06018-00 BOLT, FLANGE SH.6x18 2 Y 20060601 KMYSE1B4?7C028918
8    S6001-06025-00 BOLT, FLANGE SH.6x25 4 Y 20060601 KMYSE1B4?7C028918



Do you need parts for Korean Scooters? Such as Hyosung or Daelim?
Only one distributor has it all in the USA make sure to visit MRP http://www.mrp-speed.com
F-24


WIRE HARNESS
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
COIL ASS'Y, IGNITION
RECTIFIER COMP., REGULATE
HARNESS, WIRE
KEY SET
RESISTOR COMP.
HORN COMP.
RELAY ASS'Y, STARTER
0.6
0.4
1.5
1.0
0.3
0.3
0.5
1    30510-SE1-0000 COIL COMP., IGNITION 1 Y 20060601 KMYSE1B4?7C028918
2    30605-SE5-9000 SEAL, HIGH TENTION(TERMINAL) 1 N 20060601 KMYSE1B4?7C028918
3    3070A-SC1-9500 CAP ASS'Y, SPARK PLUG 1 Y 20060601 KMYSE1B4?7C028918
4    30700-SE5-9000 CAP ASS'Y, NOISE SUPPRESSOR 1 N 20060601 KMYSE1B4?7C028918
5    31600-SE6-9800 RECTIFIER COMP., REGULATOR 1 Y 20060601 KMYSE1B4?7C028918

6    32100-SE1-0020 HARNESS, WIRE 1 Y N 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323

6-1    32100-SE1-MA00 HARNESS, WIRE 1 Y N 20070509 KMYSE1B4?8C034324 KMYSE1B4?8K035683
    32100-SE1-MA10 HARNESS, WIRE 1 Y 20090921 KMYSE1B4?8K035684
7    35010-SE1-0000-M1 KEY SET 1 Y 20060601 KMYSE1B4?7C028918
8    35121-SE1-0000 KEY, BLANK NO.1 1 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8K035683
    35121-SZ1-0000 KEY, BLANK NO.1 1 Y 20080701 KMYSE1B4?8K035684
9    35400-SE5-0000 RESISTOR COMP. 1 Y 20060601 KMYSE1B4?7C028918
10    35401-SE1-0000 RESISTOR COMP., B 1 Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323

11    35700-SE1-RB20-M1 SWITCH ASS'Y, SIDE STAND 1 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8K035683
    35700-SE1-RB00-M2 SWITCH ASS'Y, SIDE STAND 1 Y 20080617 KMYSE1B4?8K035684
12    38110-SA1-0000-EU HORN COMP. 1 Y 20060601 KMYSE1B4?7C028918
13    38500-CB3-7000 RELAY ASS'Y, STARTER 1 Y 20060601 KMYSE1B4?7C028918
14    38501-CB3-7000 RELAY COMP., STARTER 1 N 20060601 KMYSE1B4?7C028918
15    38506-CB2-0040 SUSPENSION, START RELAY 1 N 20060601 KMYSE1B4?7C028918

16    S3892-05016-08 SCREW, WASHER 5x16 2 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8K035683

F-24


WIRE HARNESS
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No


    S3892-05016-00 SCREW, WASHER 5x16 2 Y 20100501 KMYSE1B4?8K035684
17    S4050-06080 NUT, FLANGE 6mm 3 Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323
    S4050-06080 NUT, FLANGE 6mm 2 Y 20070509 KMYSE1B4?8C034324
18    S5701-06010-08 BOLT, FLANGE 6x10 1 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8K035683
    S5701-06010-00 BOLT, FLANGE 6x10 1 Y 20100501 KMYSE1B4?8K035684
19    S5701-06012-08 BOLT, FLANGE 6x12 1 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8K035683
    S5701-06012-00 BOLT, FLANGE 6x12 1 Y 20100501 KMYSE1B4?8K035684
20    S6001-06020-00 BOLT, FLANGE SH.6x20 2 Y 20060601 KMYSE1B4?7C028918
21    S8200-10700 FUSE, 7A 2 Y N 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323
    S8200-11500 FUSE, 15A 2 Y 20070509 KMYSE1B4?8C034324

Do you need to find parts for a United Motors dirtbike, scooter, atv, or motorcycle? Need Chongqing HuanSong Industries UTV parts? Hyosung S&T Motors Scooter parts? How about an LS Motorsports Precision or Diamo? CFMOTO? TNG? Linhai? Malaguti Italy? Does your local shop not know what these names mean? Are you looking for parts for scooters and having a hard time? Well then visit one of our dealers and have them give us a call. We are the only scooter parts distributor in the USA that is solely dealer direct and we are happy to send any potential online inquiries to stocking stores. So any consumers looking for Daelim parts will have to go to a store with an MRP account or have their store buy from another dealer that has an account with us. We also sell top name scooter brands like SN, Duro, Innova, Kenda, Bridgestone, Gates, Powerlink, We have partsforscooters for hard to find brands like United Motors -- Hyosung Scooters! Twist N Go Scooters! ATK Motors AKM, PFS, Andretti Benelli and much much more! Keeway Malaguti Linhai Loncin Huanson UTVs Qiangjiang Motorcycles Linhai Zongseh Lingyuen CF MOTO Loncin Lifan and more! Dealer locator

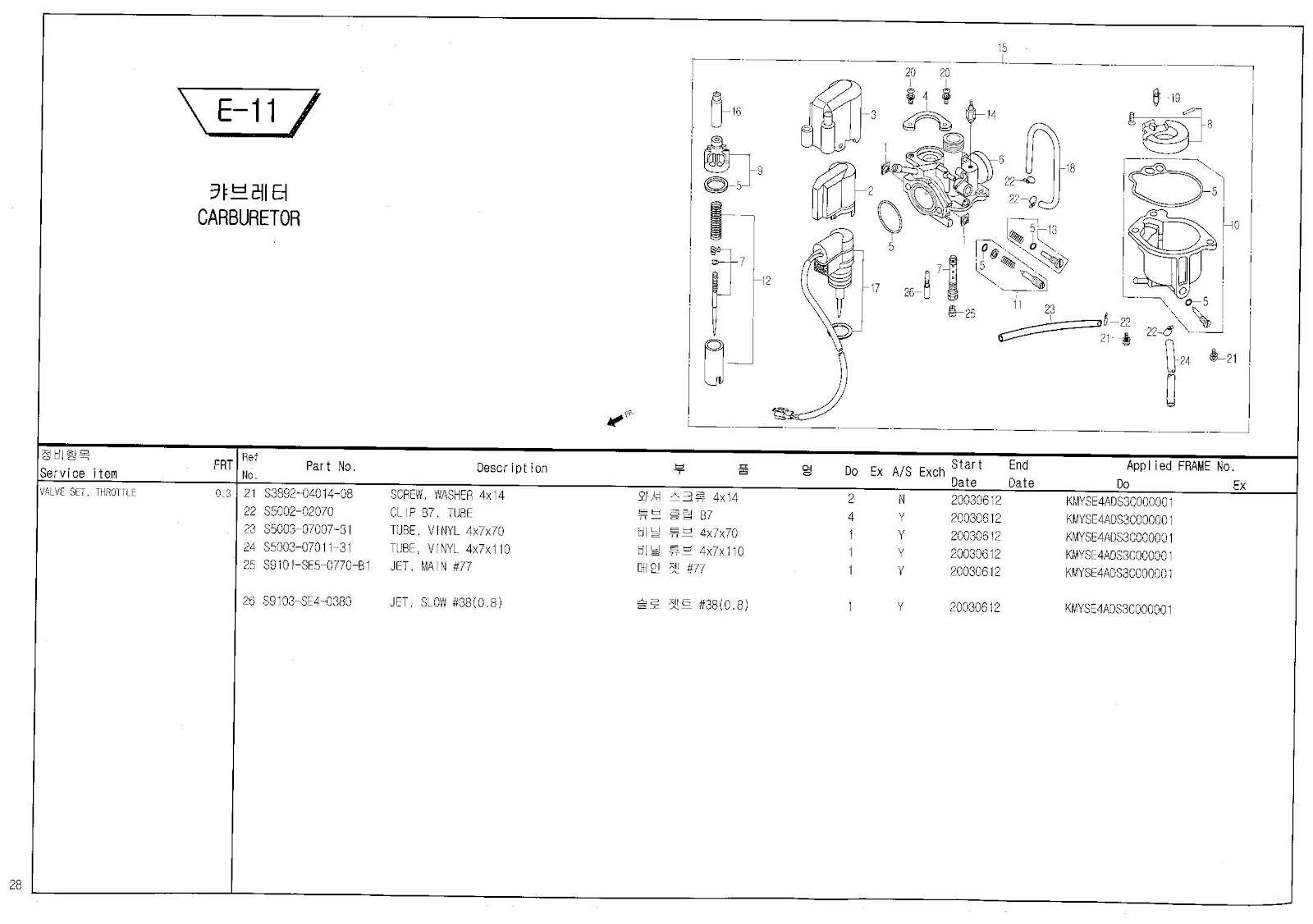

E-11


CARBURETOR
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
NEEDLE, JET
.CARBURETOR ASS'Y
FLOAT COMP.
.BYSTARTER ASS'Y, AUTO
.VALVE COMP., FLOAT
.JET, MAIN
CHAMBER, FLOAT
VALVE, THROTTLE
0.7
0.6
0.5
0.3
1    16005-SC1-0000 NUT, SQUARE 2 N 20060601 KMYSE1B4?7C028918
2    16007-SC1-0000 CAP, HOLDER 1 N 20060601 KMYSE1B4?7C028918
3    16008-SC1-0000 CAP, OUTER 1 N 20060601 KMYSE1B4?7C028918
4    16009-SC1-0000 PLATE, SETTING 1 N 20060601 KMYSE1B4?7C028918
5    16010-SE5-0000 GASKET SET(EURO2) 1 N 20060601 KMYSE1B4?7C028918

6    16012-SE1-RZ00 NEEDLE SET, JET(EURO2) 1 N 20060601 KMYSE1B4?7C028918
7    16013-CB2-2040 FLOAT SET(EURO2) 1 N 20060601 KMYSE1B4?7C028918
8    16014-SE5-0030 TOP SET(EURO2) 1 N 20060601 KMYSE1B4?7C028918
9    16015-SE5-1000 CHAMBER SET, FLOAT(EURO2) 1 N 20060601 KMYSE1B4?7C028918
10    16016-SE5-1000 SCREW SET, ADJUST(EURO2) 1 N 20060601 KMYSE1B4?7C028918

11    16022-SE5-8300 VALVE SET, THROTTLE(EURO2) 1 N 20060601 KMYSE1B4?7C028918
12    16028-SC1-0030 SCREW SET(EURO2) 1 N 20060601 KMYSE1B4?7C028918
13    16100-SE1-RZ00 CARBURETOR ASS'Y(EURO2) 1 Y 20060601 KMYSE1B4?7C028918
14    16143-SE5-0000 CAP, CABLE SEALING(EURO2) 1 N 20060601 KMYSE1B4?7C028918
15    16150-SE5-0000 BYSTARTER ASS'Y, AUTO(EURO2) 1 N 20060601 KMYSE1B4?7C028918

16    16161-SE5-0000 TUBE, AIR VENT(EURO2) 1 N 20060601 KMYSE1B4?7C028918
17    16170-CB3-0000 VALVE COMP., FLOAT(EURO2) 1 N 20060601 KMYSE1B4?7C028918
18    S3892-04008-10 SCREW, WASHER 4x8 2 N 20060601 KMYSE1B4?7C028918
19    S3892-04014-08 SCREW, WASHER 4x14 2 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8K035683
    S3892-04014-00 SCREW, WASHER 4x14 2 N 20100501 KMYSE1B4?8K035684
20    S5002-02070 CLIP, B7 TUBE 4 N 20060601 KMYSE1B4?7C028918

E-11


CARBURETOR
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No


21    S5003-07007-31 TUBE, VINYL 4x7x70(EURO2) 1 N 20060601 KMYSE1B4?7C028918
22    S5003-07025-31 TUBE, VINYL 4x7x250(EURO2) 1 N 20060601 KMYSE1B4?7C028918
23    S9101-SE5-0650-B1 JET, MAIN #65(EURO2) 1 Y 20060601 KMYSE1B4?7C028918
24    S9103-SE5-0350-B1 JET, SLOW #35(EURO2) 1 Y 20060601 KMYSE1B4?7C028918


E-10


CRANK SHAFT / PISTON
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
SHAFT COMP., CRANK
BEARING, RADIAL BALL 20x56x12
(SIDE,LH. 2.9)
(ADD 0.2 FOR EACH)
RING SET, PISTON
.PISTON
.PIN, PISTON
ROD, CONNECTING
(INCLUDE RELATIVE PARTS)
3.0
3.0
1.2
3.0
1    13000-SE1-0000 SHAFT COMP., CRANK 1 Y 20060601 KMYSE1B4?7C028918
2    1310A-SE1-0000 PISTON SET 1 Y 20060601 KMYSE1B4?7C028918
3    13101-SE1-0000 PISTON 1 N 20060601 KMYSE1B4?7C028918
4    13111-SE5-0000 PIN, PISTON 1 N 20060601 KMYSE1B4?7C028918
5    13115-SE5-0000 CLIP, PISTON PIN 12mm 2 Y 20060601 KMYSE1B4?7C028918

6    13121-SE5-0000 RING, PISTON TOP 1 Y 20060601 KMYSE1B4?7C028918
7    13131-SE5-0000 RING, PISTON 2ND 1 Y 20060601 KMYSE1B4?7C028918
8    13136-SE5-0000 EXPANDER 1 Y 20060601 KMYSE1B4?7C028918
9    13201-SE1-0000 ROD, CONNECTING 1 N 20060601 KMYSE1B4?7C028918
10    13202-SE5-0030-H1 PLATE, CONNECTING ROD SIDE 2 N 20060601 KMYSE1B4?7C028918

11    13311-SE1-0000-H1 SHAFT, RH.CRANK 1 N 20060601 KMYSE1B4?7C028918
12    13321-SE1-0000-H1 SHAFT, LH.CRANK 1 N 20060601 KMYSE1B4?7C028918
13    13381-SE6-7210-Y1 PIN, CRANK 1 N 20060601 KMYSE1B4?7C028918
14    90741-CB2-0000 KEY, WOODRUFF 1 Y 20060601 KMYSE1B4?7C028918
15    91002-SE6-9800-H1 BEARING, CONNECTING ROD BIG END 1 N 20060601 KMYSE1B4?7C028918

16    91001-SB1-0000 BEARING, RADIAL BALL A 6304SP 20x56x12 2 Y 20060601 KMYSE1B4?7C028918
17    91102-SE1-0000-M2 BEARING, CONNECTING ROD SMALL END 1 Y 20060601 KMYSE1B4?7C028918

MRP has parts for engine models marked 139qmb, gy6, 152qmi,152qmj, 157qmi, 157qmj, 1pe40qmb, 1de41qmb, 172mm cf250 watercooled, 1e50qmf,d1e41qmb, 1p58mj, lh173mn, 170mm, 173mm, 1p52fmh-c, 1p47fm, 1p55fm, 1p39fm,1p50fm, 1p57fm c110 horizontal Honda copy, JOG copy, VOG copy, Helix copy,2strokes, two strokes, 4strokes four strokes with CVT belt automatictransmissions. We stock all parts like carburetor, cylinder, head, valves,spark plug, rings, gasket, springs, covers, rods, crank assembly, cases,variator, rollers, sleave bushings, belts, clutch, torque spring, pulley,transmission gears and shafts, stator, generator, alternator, igntion pickup,coil, CDI, ignition switch, ballast resister, diode, regulator, charging systems and more!

E-09


CRANK CASE / OIL PUMP
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
CASE, RH.CRANK
CASE, LH.CRANK
BUSH, ENGINE HANGER RUBBER
VALVE COMP., REED
PUMP ASS'Y, OIL
PIPE COMP., INLET
.BEARING, BALL 6201
INSULATOR, CARBURETOR
.O-RING 18.3x2.3
BEARING, RADIAL BALL 6004UU
.SEAL, OIL 30x42x7
SEAL, OIL 15.6x25.5x7
(SIDE, LH.2.8)
*2.7
*3.6
0.5
0.8
0.6
0.7
0.5
1.0
0.9
1    11100-SE1-0010 CASE, RH.CRANK 1 Y 20060601 KMYSE1B4?7C028918
2    11102-SE5-0040-M1 BUSH, ENGINE HANGER RUBBER( KOK ) 2 Y 20060601 KMYSE1B4?7C028918
3    1120A-CB2-0000 PIN ASS'Y, BRAKE SHOE ANCHOR 1 Y 20060601 KMYSE1B4?7C028918
4    11200-SE1-0010 CASE, LH.CRANK 1 Y 20060601 KMYSE1B4?7C028918
5    11202-SE5-3000 RUBBER, SPRING GUIDE 2 Y 20060601 KMYSE1B4?7C028918

6    11205-SE5-7610-M1 BUSH 8x12x8 1 Y 20060601 KMYSE1B4?7C028918
7    11211-SE1-0000 TUBE, BREATHER 1 Y 20060601 KMYSE1B4?7C028918
8    14100-SE1-0030 VALVE COMP., REED 1 Y 20060601 KMYSE1B4?7C028918
9    15100-SE1-0000 PUMP ASS'Y, OIL 1 Y 20060601 KMYSE1B4?7C028918
10    15111-SE1-0000 PLATE, OIL PUMP SETTING 1 Y 20060601 KMYSE1B4?7C028918

11    15113-SE1-0000 PLATE, OIL PUMP ANCHOR 1 Y 20060601 KMYSE1B4?7C028918
12    1552A-SE1-0010 TUBE ASS'Y, OIL PASS 1 Y 20060601 KMYSE1B4?7C028918
13    1621A-SE5-0000 INSULATOR ASS'Y, CARBURETOR(EURO2) 1 Y 20060601 KMYSE1B4?7C028918
14    17100-SE1-RZ00 PIPE COMP., IN.(EURO2) 1 Y 20060601 KMYSE1B4?7C028918
15    17111-SE1-RB00 GASKET, IN.PIPE A 1 Y 20060601 KMYSE1B4?7C028918

16    17112-SE1-RB00 GASKET, IN.PIPE B 1 Y 20060601 KMYSE1B4?7C028918
17    90084-CB2-8300 CAP, A.C GENERATOR 1 Y 20060601 KMYSE1B4?7C028918
18    90086-SB1-0000-EU BOLT, IN.PIPE SPECIAL 1 Y 20060601 KMYSE1B4?7C028918
19    91009-SC1-0030 BEARING, RADIAL BALL 6004 UU 1 Y 20060601 KMYSE1B4?7C028918
20    91201-SE1-0000 SEAL, OIL 15.6x25.5x7 1 Y 20060601 KMYSE1B4?7C028918
21    91202-SE1-0000 SEAL, OIL 19.4x31x7 1 Y 20060601 KMYSE1B4?7C028918

E-09


CRANK CASE / OIL PUMP
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No


22    91204-SA1-0000 SEAL, OIL 30x42x7 1 Y 20060601 KMYSE1B4?7C028918
23    91301-BA6-0000 O-RING 18.3x2.3 1 N 20060601 KMYSE1B4?7C028918
24    91303-CB2-1000 O-RING 13.8x2.5 1 Y 20060601 KMYSE1B4?7C028918
25    90701-SE5-0000 PIN, DOWEL SPECIAL 8x20 2 Y 20060601 KMYSE1B4?7C028918

26    S6001-06032-00 BOLT, FLANGE SH.6x32 3 Y 20060601 KMYSE1B4?7C028918
27    S6001-06035-00 BOLT, FLANGE SH.6x35 1 Y 20060601 KMYSE1B4?7C028918
28    S6001-06045-00 BOLT, FLANGE SH.6x45 5 Y 20060601 KMYSE1B4?7C028918
29    S6001-06050-00 BOLT, FLANGE SH.6x50 1 Y 20060601 KMYSE1B4?7C028918
30    S6001-06065-00 BOLT, FLANGE SH.6x65(EURO2) 1 Y 20060601 KMYSE1B4?7C028918

31    S6001-06080-00 BOLT, FLANGE SH.6x80(EURO2) 1 Y 20060601 KMYSE1B4?7C028918
32    S6100-62013-00 BEARING, BALL 6201 1 Y 20060601 KMYSE1B4?7C028918


E-08


TRANSMISSION
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
COVER, MISSION
GASKET, MISSION COVER
.SEAL, OIL 17x30x5
SHAFT, DRIVE
.SHAFT, COUNTER
.GEAR, COUNTER
.BEARING, BALL 6202
.BEARING, RADIAL BALL 6203 TMB
GEAR COMP., FINAL
BUSH,RR.CUSHION UNDER RUBBER
0.8
0.6
0.7
0.9
0.5
1    11204-SA1-0000 BUSH, RR.CUSHION UNDER RUBBER 1 Y 20060601 KMYSE1B4?7C028918
2    2130A-SE1-0000 COVER ASS'Y, MISSION 1 Y 20060601 KMYSE1B4?7C028918
3    21395-SE1-0000 SEAL, MISSION COVER 1 Y 20060601 KMYSE1B4?7C028918
4    21396-SE1-0000 GUIDE RUBBER, MISSION COVER 2 Y 20060601 KMYSE1B4?7C028918
5    23411-SE1-0000 SHAFT, DRIVE 1 Y 20060601 KMYSE1B4?7C028918

6    23421-SE1-0000 SHAFT, COUNTER 1 Y 20060601 KMYSE1B4?7C028918
7    23422-SE1-0000 GEAR, COUNTER 1 Y 20060601 KMYSE1B4?7C028918
8    23430-SE1-0000 GEAR COMP., FINAL 1 Y 20060601 KMYSE1B4?7C028918
9    90035-SE5-0000 BOLT, CHECK 1 Y 20060601 KMYSE1B4?7C028918
10    90429-SE5-0030 WASHER, SIDE 14mm 1 Y 20060601 KMYSE1B4?7C028918

11    90454-SE5-0000 WASHER, THRUST 14mm 1 Y 20060601 KMYSE1B4?7C028918
12    90481-CB2-0000 WASHER, 8mm 1 Y 20060601 KMYSE1B4?7C028918
13    91004-SC1-7010-M1 BEARING, RADIAL BALL 6203(TMB) 1 Y 20060601 KMYSE1B4?7C028918
14    91204-SE5-0050 OIL SEAL 17x30x5 1 Y 20060601 KMYSE1B4?7C028918
15    S4301-10160 PIN, DOWEL 10x16 2 Y 20060601 KMYSE1B4?7C028918

16    S6001-06028-00 BOLT, FLANGE SH.6x28 3 Y 20060601 KMYSE1B4?7C028918
17    S6001-06035-00 BOLT, FLANGE SH.6x35 2 Y 20060601 KMYSE1B4?7C028918
18    S6100-62023-00 BEARING, BALL 6202 1 Y 20060601 KMYSE1B4?7C028918


E-07


DRIVEN FACE
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
OUTER, CLUTCH
WEIGHT SET, CLUTCH
(INCLUDE RELATIVE PARTS)
.FACE COMP., MOVABLE DRIVEN
BELT, DRIVE
.SPRING, DRIVEN FACE
FACE ASS'Y, DRIVEN
.BEARING, REDIAL BALL
.BEARING, NEEDLE 17x25x18
0.3
1.0
0.5
0.6
1    22100-SE5-7500 OUTER, CLUTCH 1 Y 20060601 KMYSE1B4?7C028918
2    22300-SE1-0100 PLATE ASS'Y, DRIVE 1 Y 20060601 KMYSE1B4?7C028918
3    22350-SE6-9800 PLATE COMP., DRIVE 1 N 20060601 KMYSE1B4?7C028918
4    22401-SE6-9800 SPRING, CLUTCH 3 N 20060601 KMYSE1B4?7C028918
5    22530-SE1-0100 WEIGHT, CLUTCH 3 N 20060601 KMYSE1B4?7C028918

6    22804-SC1-0000 RUBBER, CLUTCH DAMPER 3 N 20060601 KMYSE1B4?7C028918
7    2301B-SE1-0000 PULLEY SUB ASS'Y, DRIVEN 1 Y 20060601 KMYSE1B4?7C028918
8    23010-SE1-0000 PULLEY ASS'Y, DRIVEN 1 Y 20060601 KMYSE1B4?7C028918
9    23100-SE1-0000 BELT, DRIVE 1 Y 20060601 KMYSE1B4?7C028918
10    23200-SE1-0000 FACE ASS'Y, DRIVEN 1 Y 20060601 KMYSE1B4?7C028918

11    23210-SE1-0000 FACE COMP., DRIVEN 1 N 20060601 KMYSE1B4?7C028918
12    23220-SE1-0000 FACE COMP., MOVAVLE DRIVEN 1 N 20060601 KMYSE1B4?7C028918
13    23225-SE5-0100 PIN, GUIDE 2 N 20060601 KMYSE1B4?7C028918
14    23233-CB2-0000 SPRING, DRIVEN FACE 1 Y 20060601 KMYSE1B4?7C028918
15    23237-SE5-0000 COLLAR, SEAL 1 N 20060601 KMYSE1B4?7C028918

16    23238-SE5-0100 COLLAR, SPRING 1 N 20060601 KMYSE1B4?7C028918
17    90202-SE5-0000 NUT, SPECIAL 28mm 1 Y 20060601 KMYSE1B4?7C028918
18    90308-SE5-0000 NUT, SPECIAL FLANGE 10mm 1 Y 20060601 KMYSE1B4?7C028918
19    90442-SC1-0000 WASHER, THRUST 6mm 3 N 20060601 KMYSE1B4?7C028918
20    90603-SC1-0000 CIR CLIP 6mm 3 N 20060601 KMYSE1B4?7C028918
21    91001-SE5-7010-M1 BEARING, RADIAL BALL 6901 U 1 N 20060601 KMYSE1B4?7C028918

E-07


DRIVEN FACE
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No


22    91103-SE5-0030 BEARING, NEEDLE 17x25x18 WS 1 N 20060601 KMYSE1B4?7C028918
23    91211-SE5-0130 OIL SEAL 34x39x3 2 Y 20060601 KMYSE1B4?7C028918
24    91351-SE5-1000 O-RING 38.5x2 1 Y 20060601 KMYSE1B4?7C028918
25    91351-SE5-0000 O-RING, PINION CAP 1 Y 20060601 KMYSE1B4?7C028918

26    S4520-24000 CIR CLIP, INTERNAL 24 1 N 20060601 KMYSE1B4?7C028918


E-06


DRIVE FACE / KICK STARTER SPINDLE
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
FACE, DRIVE
FACE COMP., MOVABLE DRIVE
.ROLLER COMP.,WEIGHT
(ONE OR ALL)
(INCLUDE RELATIVE PARTS)
GEAR COMP., KICK DRIVEN
SPINDLE COMP., KICK STARTER
.SPRING, KICK RETURN
0.6
0.8
0.4
0.5
1    22102-SE6-7210-M1 FACE COMP., DRIVE 1 Y 20060601 KMYSE1B4?7C028918
2    22105-SE1-RB00 BOSS, DRIVE FACE 1 N 20060601 KMYSE1B4?7C028918
3    2211A-SE1-RZ00 FACE ASS'Y, MOVABLE DRIVE(EURO2) 1 Y 20060601 KMYSE1B4?7C028918
4    22110-SE5-0000 FACE COMP., MOVABLE DRIVE(EURO2) 1 N 20060601 KMYSE1B4?7C028918
5    22121-SC1-0000 ROLLER COMP., WEIGHT(12g: EURO2) 6 Y 20060601 KMYSE1B4?7C028918

6    22131-SE1-RZ00 PLATE, RAMP(EURO2) 1 Y 20060601 KMYSE1B4?7C028918
7    22132-SE5-0000 PIECE, SLIDE(EURO2) 3 Y 20060601 KMYSE1B4?7C028918
8    28223-SE1-0000 SPRING, FRICTION STARTER GEAR 1 N 20060601 KMYSE1B4?7C028918
9    2823A-SE1-0000 GEAR ASS'Y, KICK DRIVEN 1 Y 20060601 KMYSE1B4?7C028918
10    28230-SE1-0000 GEAR COMP., KICK DRIVEN 1 N 20060601 KMYSE1B4?7C028918

11    28250-SE5-6010 SPINDLE COMP., KICK STARTE 1 Y 20060601 KMYSE1B4?7C028918
12    28253-SE5-6010-M1 BUSH, KICK SPINDLE 1 Y 20060601 KMYSE1B4?7C028918
13    28281-SE5-6020-M1 SPRING, KICK RETURN 1 Y 20060601 KMYSE1B4?7C028918
14    90412-BA6-0000 WASHER, THRUST 10mm 1 Y 20060601 KMYSE1B4?7C028918
15    90426-SC1-9000 WASHER, SPECIAL 12mm 1 Y 20060601 KMYSE1B4?7C028918

16    90451-SE5-6000 WASHER, KICK SPINDLE 1 Y 20060601 KMYSE1B4?7C028918
17    S4001-12200-0S NUT, HEX.12mm 1 Y 20060601 KMYSE1B4?7C028918
18    S4511-14000 CIR CLIP, EXTERNAL 14mm 1 Y 20060601 KMYSE1B4?7C028918

E-05


LEFT SIDE COVER
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
COVER COMP., LH.SIDE
GASKET, LH.SIDE COVER
0.5
0.5
1    11205-SE5-7610-M1 BUSH 8x12x8 1 Y 20060601 KMYSE1B4?7C028918
2    11340-SE1-0000 COVER COMP., LH.SIDE(SILVER) 1 Y 20060601 KMYSE1B4?7C028918
    11340-SE3-0000 COVER COMP., LH.SIDE(BLACK) 1 Y 20060720 KMYSE1B4?7C033571
3    11395-SE1-RB00 GASKET, LH.SIDE COVER 1 Y 20060601 KMYSE1B4?7C028918
4    43452-SE1-0000 CLAMP, RR.BRAKE CABLE 1 Y 20060601 KMYSE1B4?7C028918
5    S4301-10160 PIN, DOWEL 10x16 2 Y 20060601 KMYSE1B4?7C028918

6    S6001-06040-00 BOLT, FLANGE SH.6x40 11 Y 20060601 KMYSE1B4?7C028918
7    S6001-06080-00 BOLT, FLANGE SH.6x80 2 Y 20060601 KMYSE1B4?7C028918

E-04


STARTING MOTOR
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
MOTOR UNIT, STARTER
.PINION ASS'Y, STARTER
BRACKET, FR.
.HOLDER, BRUSH
0.5
0.5
0.7
1    31200-SE5-9000 MOTOR UNIT, STARTER 1 Y 20060601 KMYSE1B4?7C028918
2    31209-SE5-0150 PINION ASS'Y, STARTER 1 Y 20060601 KMYSE1B4?7C028918
3    31213-SE5-9000 BRACKET, FR. 1 N 20060601 KMYSE1B4?7C028918
4    31214-SE5-9000 SPRING, BRUSH 2 N 20060601 KMYSE1B4?7C028918
5    31215-SE5-9000 HOLDER, BRUSH 2 N 20060601 KMYSE1B4?7C028918

6    31217-SE5-9000 PACKING 1 N 20060601 KMYSE1B4?7C028918
7    32964-SC1-0200 CLAMP, CORD 1 Y 20060601 KMYSE1B4?7C028918
8    91309-SE5-9000 GASKET, STARTER MOTOR 1 Y 20060601 KMYSE1B4?7C028918
9    S3892-04008-08 SCREW, WASHER 4x8 2 N 20060601 KMYSE1B4?7C028918
10    S6001-06016-00 BOLT, FLANGE SH.6x16 2 Y 20060601 KMYSE1B4?7C028918

Brands include: DAELIM, HYOSUNG MOTORS, CPI, Malaguti, PGO imported by Genuine, Aprilia, Kymco, avanti baja motorsports baron bashan boreemmotorsports dazon ( diamondback sicylian ) cool sports cpi diamo (veluxvelocity torino retro fury tracer velux gtx ) fly fribest fushin gatormotogeely genuine scooters hanma hammerhead jcl galaxy powersports jmstar jonwaykinroad lance powersprots ( venice vintage milan f4 duke pheonix grand touringcharming ) lifan longbo moto bravo moto fino nst panterra peace primo qinjqiqlink roketa schwin shanghai meitian strada sunl tank (urban racer viaggiopronto urban touring classic courier 250 ) tgb (sunset delivery laser r50x keywest ) tng united motors vento ( phantom gt5 zip phantera triton  ) Shanghai Shenke, verucci viva wildfirex-treme xingyue zhejiang amp MRP HAS IT ALL FOR SCOOTER PARTS. MORE DAELIM PART NUMBERS:


F-18


AIR CLEANER
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
ELEMENT, AIR CLEANER
CASE COMP., AIR CLEANER
COVER, AIR CLEANER
CLEANER ASS'Y, AIR
0.3
0.4
0.1
0.4
1    17200-SE1-RZ00 AIR CLEANER ASS'Y(EURO2) 1 Y 20060601 KMYSE1B4?7C028918
2    17205-SE1-0000 ELEMENT, AIR CLEANER 1 Y 20060601 KMYSE1B4?7C028918
3    17207-SE1-0000 COVER, AIR CLEANER 1 N 20060601 KMYSE1B4?7C028918
4    17208-SE5-0100 COLLAR, AIR CLEANER SETTING 2 N 20060601 KMYSE1B4?7C028918
5    17212-SE1-0000 SEAL, AIR CLEANER 1 N 20060601 KMYSE1B4?7C028918

6    17215-SE6-9800-H1 DUCT, AIR CLEANER 1 N 20060601 KMYSE1B4?7C028918
7    90652-BA6-6400 BAND 42, AIR CLEANER CONNECTING TUBE 1 N 20060601 KMYSE1B4?7C028918
8    S3404-06028-08 BOLT, WASHER 6x28 2 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8K035683
    S3404-06028-00 BOLT, WASHER 6x28 2 Y 20100501 KMYSE1B4?8K035684
9    S3891-05012-07 SCREW, WASHER 5x12 5 N 20060601 KMYSE1B4?7C028918
10    S5701-06020-08 BOLT, FLANGE 6x20 1 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8K035683
    S5701-06020-00 BOLT, FLANGE 6x20 1 Y 20100501 KMYSE1B4?8K035684

F-09


FRONT BRAKE CALIPER
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
SEAL SET, PISTON
.PISTON
(INCLUDE RELATIVE PARTS)
PAD SET
.BRACKET, RR.
CALIPER ASS'Y, LH.FR.
0.5
0.2
0.4
1    43352-SE6-9800-M4 SCREW, BLEEDER(KL) 1 N 20060601 KMYSE1B4?7C028918
2    43353-SE6-9800-M4 CAP, BLEEDER(KL) 1 N 20060601 KMYSE1B4?7C028918
3    45100-SE1-RB00-M4 CALIPER ASS'Y, LH.FR. 1 Y 20060601 KMYSE1B4?7C028918
4    45105-SE5-RB00-M4 PAD COMP. 2 Y 20060601 KMYSE1B4?7C028918
5    45107-SE6-9800-M4 PISTON(KL) 1 N 20060601 KMYSE1B4?7C028918

6    45108-SE6-9800-M4 SPRING, PAD.(KL) 1 N 20060601 KMYSE1B4?7C028918
7    45109-SE6-9800-M4 SEAL, PISTON DUST(KL) 1 N 20060601 KMYSE1B4?7C028918
8    45110-SE1-0000-M4 BRACKET, LH. 1 N 20060601 KMYSE1B4?7C028918
9    45114-SE6-9800-M4 SHIM, LH(KL) 1 N 20060601 KMYSE1B4?7C028918
10    45115-SE6-9800-M4 PIN, SLIDE(KL) 1 N 20060601 KMYSE1B4?7C028918

11    45131-SE6-9800-M4 BOLT, PIN(KL) 1 N 20060601 KMYSE1B4?7C028918
12    45132-SE6-9800-M4 BUSH, PIN(KL) 1 N 20060601 KMYSE1B4?7C028918
13    45133-SE6-9800-M4 BOOT, PIN(KL) 1 N 20060601 KMYSE1B4?7C028918
14    45134-SE6-9800-M4 PLUG, DUST(KL) 1 N 20060601 KMYSE1B4?7C028918
15    45209-SE6-9800-M4 SEAL, PISTON(KL) 1 N 20060601 KMYSE1B4?7C028918

16    45215-BA6-0000-M4 PIN, HANGER(KL) 2 N 20060601 KMYSE1B4?7C028918
17    45218-SE6-9800-M4 WASHER, CONICAL SPRING 1 N 20060601 KMYSE1B4?7C028918
18    S5801-08025-08 BOLT, FLANGE 8x25 2 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8K035683
    S5801-08025-00 BOLT, FLANGE 8x25 2 Y 20100501 KMYSE1B4?8K035684



F-04


FRONT BRAKE MASTER CYLINDER
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
SWITCH ASS'Y, FR.STOP
.LEVER, RH.STEERING HANDLE
HOSE ASS'Y, FR.BRAKE
CYLINDER ASS'Y, FR.MASTER
.CYLINDER SET, MASTER
DIAPHRAGM
0.3
0.5
0.7
0.1
1    35340-SC1-6700-M4 SWITCH ASS'Y, FR.STOP(KL) 1 Y 20060601 KMYSE1B4?7C028918
2    45126-SE1-0000 HOSE ASS'Y, FR.BRAKE 1 Y 20060601 KMYSE1B4?7C028918
3    45500-SE5-5100-M4 CYLINDER ASS'Y, FR.MASTER(KL) 1 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323
    45500-SE4-MA00-M4 CYLINDER ASS'Y, FR.MASTER 1 Y 20070509 KMYSE1B4?8C034324
4    45512-SE6-9800-M4 PROTECTOR(KL) 1 N 20060601 KMYSE1B4?7C028918
5    45513-SE6-9800-M4 CAP, MASTER CYLINDER(KL) 1 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323
    45513-SE4-MA00-M4 CAP, MASTER CYLINDER 1 N 20070509 KMYSE1B4?8C034324

6    45517-SE6-9800-M4 HOLDER, MASTER CYLINDER(KL) 1 N 20060601 KMYSE1B4?7C028918
7    45520-SE6-9800-M4 DIAPHRAGM.(KL) 1 N 20060601 KMYSE1B4?7C028918
8    45521-SE6-9800-M4 PLATE, DIAPHRAGM(KL) 1 N 20060601 KMYSE1B4?7C028918
9    53175-SE5-5100-M4 LEVER, RH.STEERING HANDLE(KL) 1 Y 20060601 KMYSE1B4?7C028918
10    90114-SE6-9800-M4 BOLT, HANDLE LEVER(KL) 1 N 20060601 KMYSE1B4?7C028918

11    90145-SE5-0000 BOLT, OIL 10x22 2 Y 20060601 KMYSE1B4?7C028918
12    90545-BA6-0000 WASHER, OIL BOLT 4 Y 20060601 KMYSE1B4?7C028918
13    S3600-04012-1H SCREW, FLAT 4x12 2 N 20060601 KMYSE1B4?7C028918
14    S3893-04012-18 SCREW, WASHER 4x12 1 N 20060601 KMYSE1B4?7C028918
15    S4050-06080 NUT, FLANGE 6mm 1 N 20060601 KMYSE1B4?7C028918

16    S5701-06012-08 BOLT, FLANGE 6x12 1 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8K035683
    S5701-06012-00 BOLT, FLANGE 6x12 1 Y 20100501 KMYSE1B4?8K035684
17    90107-SE5-0000-M4 BOLT, M/C HOLDER M6x22(KL) 2 N 20060601 KMYSE1B4?7C028918


F-03


HANDLE LEVER / SWITCH / CABLE
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
CABLE COMP., THROTTLE
SWITCH UNIT, STARTER
.SWITCH UNIT, LIGHTING
.SWITCH UNIT, HORN
.SWITCH UNIT, HAZARD
.SWITCH UNIT, WINKER
.SWITCH ASS'Y, FR.STOP
CABLE COMP., RR.BRAKE
GRIP COMP., THROTTLE
.LEVER, LH.STEERING HANDLE
1.5
0.3
1.0
0.4
1    17910-SE1-0000-M3 CABLE COMP., THROTTLE 1 Y 20060601 KMYSE1B4?7C028918
2    30158-SE5-0000 CIR CLIP, E-TYPE 3mm 1 N 20060601 KMYSE1B4?7C028918
3    35150-SC1-0040-M1 SWITCH UNIT, LIGHTING 1 Y N 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323
    35150-SA2-MA00 SWITCH ASS'Y, ENGINE STOP 1 Y 20070509 KMYSE1B4?8C034324
4    35160-SC1-0010-M1 SWITCH UNIT, START 1 Y 20060601 KMYSE1B4?7C028918
5    35170-CB4-0000 SWITCH UNIT, DIMMER( SANYE ) 1 Y 20060601 KMYSE1B4?7C028918

6    35180-SC1-0010-M1 SWITCH UNIT, HORN 1 Y 20060601 KMYSE1B4?7C028918
7    35200-CB4-0000 SWITCH UNIT, WINKER 1 Y 20060601 KMYSE1B4?7C028918
8    35340-SE6-9800 SWITCH ASS'Y, FR.STOP 1 Y 20060601 KMYSE1B4?7C028918
9    43450-SE1-0000-M3 CABLE COMP., RR.BRAKE 1 Y 20060601 KMYSE1B4?7C028918
10    53140-SB1-0000 GRIP COMP., THROTTLE 1 Y 20060601 KMYSE1B4?7C028918

11    5316A-SE5-0200 HOUSING ASSY, THROTTLE 1 Y 20060601 KMYSE1B4?7C028918
12    53166-SB1-0000 GRIP, LH.HANDLE 1 Y 20060601 KMYSE1B4?7C028918
13    53167-SE5-0200 HOUSING, UNDER THROTTLE 1 N 20060601 KMYSE1B4?7C028918
14    53168-SE5-0200 HOUSING, UPPER THROTTLE 1 N 20060601 KMYSE1B4?7C028918
15    5317A-SE6-0010 BRACKET ASS'Y, HANDLE 1 Y 20060601 KMYSE1B4?7C028918

16    53172-SC1-0000 BRACKET, HANDLE 1 N 20060601 KMYSE1B4?7C028918
17    53173-SE5-0000 BAND, HANDLE BRACKET 1 N 20060601 KMYSE1B4?7C028918
18    53178-SE5-5100-EU LEVER, LH.STEERING HANDLE 1 Y 20060601 KMYSE1B4?7C028918
19    53181-SE5-9000 LEVER COMP., PARKING(B) 1 N 20060601 KMYSE1B4?7C028918
20    53182-SE5-0000 SPRING, RETURN LEVER 1 N 20060601 KMYSE1B4?7C028918

F-03


HANDLE LEVER / SWITCH / CABLE
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No


21    53183-SE5-0000 PIN, PARKING LEVER PIVOT 1 N 20060601 KMYSE1B4?7C028918
22    88110-SE1-RB00 MIRROR ASS'Y, RH.BACK 1 Y N 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323
22-1    88110-SE1-0000-M1 MIRROR ASS'Y, RH.BACK 1 Y 20070509 KMYSE1B4?8C034324
23    88120-SE1-RB00 MIRROR ASS'Y, LH.BACK 1 Y N 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323
23-1    88120-SE1-0000-M1 MIRROR ASS'Y, LH.BACK 1 Y 20070509 KMYSE1B4?8C034324
24    90115-SE3-0000 SCREW, HANDLE LEVER PIVOT(B) 1 N 20060601 KMYSE1B4?7C028918
25    S3401-06020-08 BOLT, WASHER 6x20 1 Y Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?7C033570
    S5701-06018-08 BOLT, FLANGE 6x18 1 N Y 20070201 KMYSE1B4?7C033571 KMYSE1B4?8K035683
    S5701-06018-00 BOLT, FLANGE 6x18 1 Y 20100501 KMYSE1B4?8K035684

26    S3500-05028-0H SCREW, PAN 5x28 1 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8K035683
    S3500-05028-0A SCREW, PAN 5x28 1 Y 20100501 KMYSE1B4?8K035684
27    S4001-05080-0S NUT, HEX.5mm 1 N 20060601 KMYSE1B4?7C028918


F-02


SPEEDOMETER
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
SPEEDOMETER ASS'Y
SPEEDOMETER COMP.
.CASE ASS'Y
.SOCKET COMP.
CABLE COMP., SPEEDOMETER
RELAY ASS'Y, AUDIBLE WINKER
0.6
0.7
0.5
0.2
1    34908-BA7-9000 BULB, WEDGE BASE 4 Y 20060601 KMYSE1B4?7C028918
2    34908-SA2-8710-M1 BULB, WEDGE BASE 12V 1.7W 2 Y 20060601 KMYSE1B4?7C028918
3    37200-SE1-RJ10-M1 SPEEDOMETER ASS'Y 1 Y N 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323
3-1    37200-SE1-MA00-M1 SPEEDOMETER ASS'Y 1 Y 20070509 KMYSE1B4?8C034324
4    37210-SE1-0000 BODY ASS'Y, SPEEDOMETER (C) 1 Y 20060601 KMYSE1B4?7C028918
5    37211-SE1-0000 CASE ASS'Y 1 N 20060601 KMYSE1B4?7C028918

6    37212-SE1-0000 LENS, FR. 1 Y 20060601 KMYSE1B4?7C028918
7    37213-SE1-0000 WINDOW PLATE 1 N 20060601 KMYSE1B4?7C028918
9    37223-SE1-RJ00 SOCKET COMP. 1 N N 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323
9-1    37223-SE1-MA00 SOCKET COMP. 1 N 20070509 KMYSE1B4?8C034324
10    37305-BA6-0080 SCREW, WASHER 3x22 3 N 20060601 KMYSE1B4?7C028918

11    38301-BA6-0300-P RELAY COMP., AP.WINKER 1 Y 20060601 KMYSE1B4?7C028918
12    44830-SE1-0000-M3 CABLE ASS'Y, SPEEDOMETER 1 Y 20060601 KMYSE1B4?7C028918
13    90035-BA6-8710-M1 SCREW, WASHER 3x10 2 N 20060601 KMYSE1B4?7C028918
14    90107-SC1-0000 SCREW, PAN 2.3x7 4 N 20060601 KMYSE1B4?7C028918
15    91301-CB2-0000 O-RING, 7.5x1.5 1 N 20060601 KMYSE1B4?7C028918

16    S3700-05016-0G SCREW, OVAL 5x16 1 Y 20060601 KMYSE1B4?7C028918
17    S3903-24420 SCREW, TAPPING 4x16 1 N 20060601 KMYSE1B4?7C028918
18    S3903-25320 SCREW, TAPPING 5x16 3 N Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8K035683
    S3903-25310 SCREW, TAPPING 5x16 3 Y 20100501 KMYSE1B4?8K035684


F-01


HEADLIGHT / FRONT WINKER
Service item
FRT
Ref.
No.
 Part No.
Description
QTY
A/S
Exch
Start
Date
Start
FRM.No
End
FRM.No
BULB, HEADLIGHT
HEADLIGHT ASS'Y
.UNIT, HEADLIGHT
.SOCKET COMP.
0.3
0.5
1    33100-SE1-RB00 HEADLIGHT ASS'Y 1 Y N 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323

1-1    33100-SE1-MA00 HEADLIGHT ASS'Y 1 Y 20070509 KMYSE1B4?8C034324
2    33120-SE1-0030 HOLDER, BULB 1 Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323
3    33130-SE1-RB00 SOCKET COMP., HEADLIGHT 1 N N 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323
3-1    33130-SE1-MA00 SOCKET COMP., HEADLIGHT 1 N 20070509 KMYSE1B4?8C034324
4    34901-SA1-RB00 BULB, HEADLIGHT 12V 35W/35W 1 Y N 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323
4-1    34901-BA7-RB00 BULB, HEADLIGHT 12V 60W/55W 1 Y 20070509 KMYSE1B4?8C034324
5    34902-SA1-RB00 BULB, WEDGE BASE 12V 5W 1 Y Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323
    34902-SA1-RB00 BULB, WEDGE BASE 12V 5W 2 Y 20070509 KMYSE1B4?8C034324

6    34905-SE1-RB00 BULB, WINKER 12V 16W 2 Y 20060601 KMYSE1B4?7C028918 KMYSE1B4?8C034323
7    90111-SE5-1000 BOLT, FLANGE 6mm 4 Y 20060601 KMYSE1B4?7C028918

More brands than anyone else MRP carries parts for:
AKT, ATK, XMD,Zongshen,BAOTIAN, BASHAN, BENZHOU, CHARMING,FUXIN, GEELY, HANGLONG, HAOJIN, HAOJUE, HONGZHOU, HUATIAN, JIAJUE, JIANSHE,JINLUN, JMSTAR, JONWAY, KAITONG, KEEWAY, KINROAD, LIFAN, LINGBEN, LINGTIAN,LINTEX, LONCIN, LONGJIA, MEIDUO, QINGQI, RHON, SHINERAY, SKYGO, VONROAD,WANGYE, XINGYUE, YIBEN, YINGANG, ZNEN, ZONGSHEN, BMS Boreem, Fly, Sanxin whichis the contracted supplier of Yamaha-Jianshe, Honda-Jialing, Suzuki-Qingqi,Suzuki-Haojue, Jialing, Jincheng, Qianjiang, Dayang, Qingqi, Lifang, Zongshen,Loncin,Piaggio China, CFMOTO, TANK , YIP, LB50, SL50 BMS, LANCE, ETON,SUNLSUNNY, ANY QT50'S,QT21 QT22, QT150's, 250cc,VENTO, QINGQI, STADA, UNITEDMOTORS, BARON, BOSS, CIP, DIAMO, GMI, VERUCCI, LIFAN, LINHAI, METRPOLITAN, C3,ZUMA, REFLEX, ROCKETA, JMSTAR, SHENKE, NST, MBX, HONDA, MOTOBRAVO, ADLY,GEELEY, KYMCO, KEYWAY, RUCKUS, TNG,VENOM MOTORS, BAOTIAN, BASHAN, BENZHOU,CHARMING, DAYANG, DINLI, FUXIN, GEELY, GILERA, HANGLONG, HAOJIN, HAOJUE,HONGZHOU, HUATIAN, JIAJUE, JIANSHE, JINLUN, JMSTAR, JONWAY, JONWAY, KAITONG,KEEWAY, KINROAD, KYMCO, LIFAN, LINHAI, LINGBEN, LINGTIAN, LINTEX, LONCIN,LONGJIA, MAWI, MEIDUO, MOTORRO, PIAGGIO, QINGQI, RIEJU, RHON, SACHS, SHINERAY,SKYGO, SUKIDA, VESPA, VONROAD, WANGYE, XINLING, XINTIAN, XINGYUE, YIBEN,YINGANG, ZHONGYU, ZNEN, ZONGSHEN, Airsal, Arreche, Athena, BCD, Kenda, Koso,Kymco, Leovince, Malossi, Motoforce, MTKT, Naraku, Polini, Stage6, STR8,Tecnigas and Yasuni for the scooters and bikes of: Aprilia, Baotian, Benelli,Benzhou, CPI, Derbi, Generic, Gilera, Honda, Hyosung , Jinlun, Jmstar, Keeway,Kymco, Malaguti, MBK, Peugeot, PGO, Piaggio, Qingqi, REX, SYM, Tauris andYamaha. spare parts, accessories, online shop, Stage6, Polini, Airsal, Malossi,Motoforce, Tecnigas, Kymco, STR8, Top Performances, scooter tuning scooterparts, chinese scooter parts, chinese atv parts, parts, GY6, 139qmb, 1pe40qmb,cf250,big bore, performance, coils, cdi, piston, cylinder, rings, gaskets, vip,roketa, diamo, scooter dealer, ignition, scooter parts, atv parts, drive belt,669-18-30 belt, 669 belt, variator, clutch, pulley, crankshaft, engine parts,and more!

MRP distributes OEM parts for TNG (CMSI), select models ofCF Moto, Daelim Motors Korea ( parts should appear on website by mid July)Malaguti of Italy (www.Malaguti.com) Keeway Southeast (Keeway, Vento, QJ,Andretti, Yamati models), CPI Taiwan, Powersports Factory Brands PSF, Diamo,Cubik (matches OEM Vento part numbers), as well as QJ and ZNEN (who manufacturebikes for a variety of scooter importers) such as FlyScooters, Lance, BMS,Qlink models that were ZNEN corresponding to matching TNG parts.
MRP has the largest Scooter Parts & Accessories -Largest Selection for Chinese & Asian Scooter Parts in North America.Wholesale Scooter parts, Parts for Dirt Bikes, ATV, Off-Road Kart Parts moreparts to Mod your Cycle than anyone. Scooter Parts, Scooter Part, scooter parts,scooter parts, Chinese Scooter Parts, Performance Scooter Parts, Stock OEMScooter Parts for GY6, Daelim, TNG, Genuine, PGO, Piaggio, Vespa, and more!-Best Shipping, Prices, Quality.

Products carried by MRP can be obtain exclusively at select Motorcycle Dealerships and Repair Shops in the USA. MRP is the one stop wholesale ONLY scooter buggy and ATV parts distributor. For a list of retailers visit www.mrp-speed.com
When it comes to parts we have it all:

0 comments:

Post a Comment

Related Posts Plugin for WordPress, Blogger...

Blog Archive

My Ping in TotalPing.com
